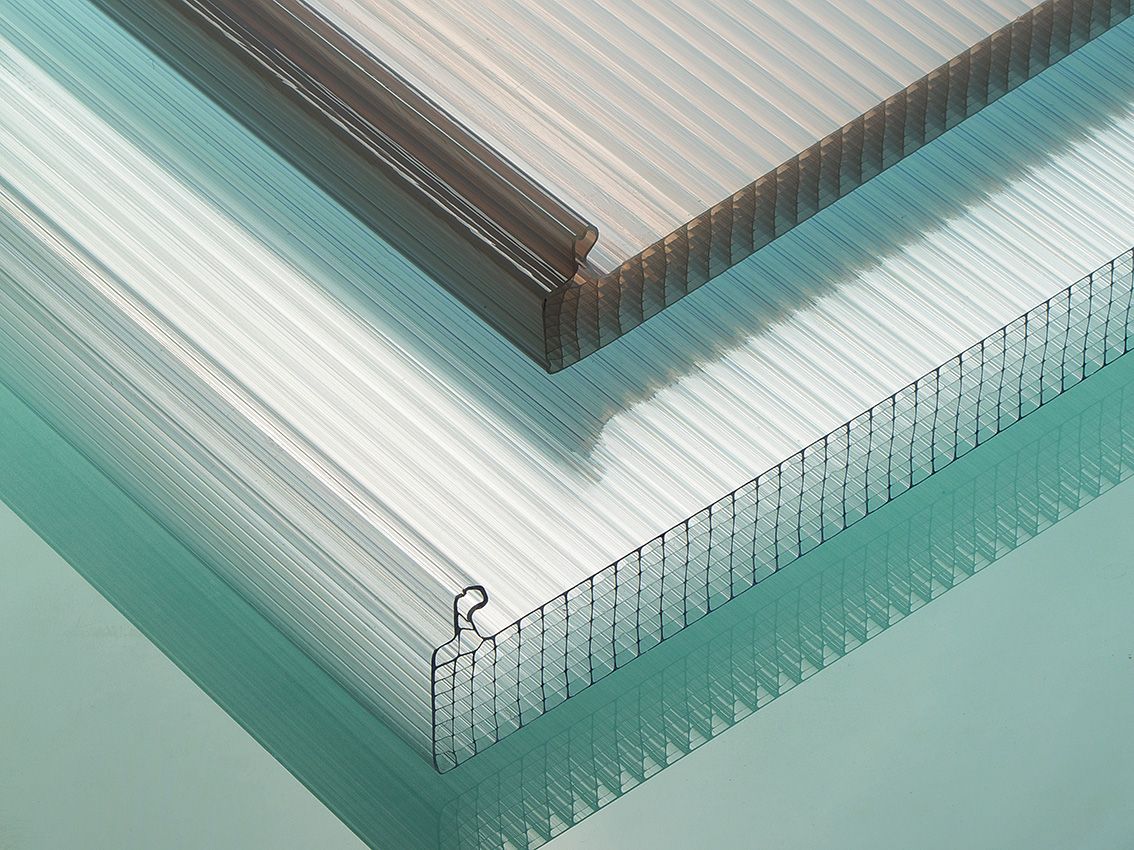

8-wall Rectangle-structure locking-design system

The 8-wall rectangular structure lock design sheet is suitable for long-term applications in high-load and large-span systems. This sheet offers exceptional thermal insulation performance and impact strength, while being extremely lightweight. The standing seam design adapts to thermal expansion and contraction, effectively preventing water leakage issues. The thickness range is from 16 to 30 millimeters.

Functions Can Be Added
  • Easy Installation
  • Light Transmission
  • U.V. Protection
  • Heat Insulation
  • High Anti-Load Property
  • Highly Flexible

Standard Width:1000/1050*2000/3000/3050/5800/11600/11800/12000mm

  • Sidewalls
  • Windows
  • Roofing
  • Skylights
